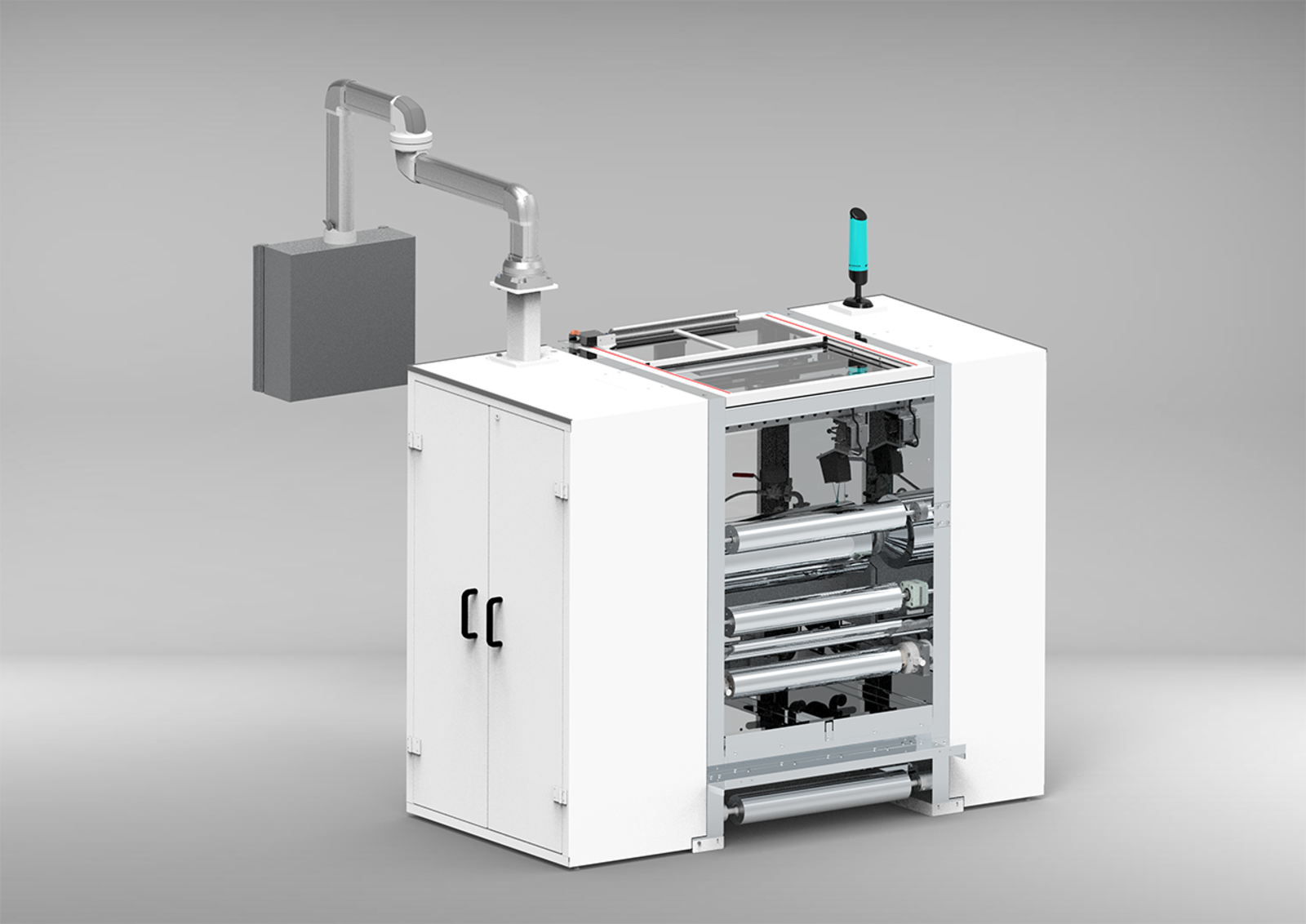

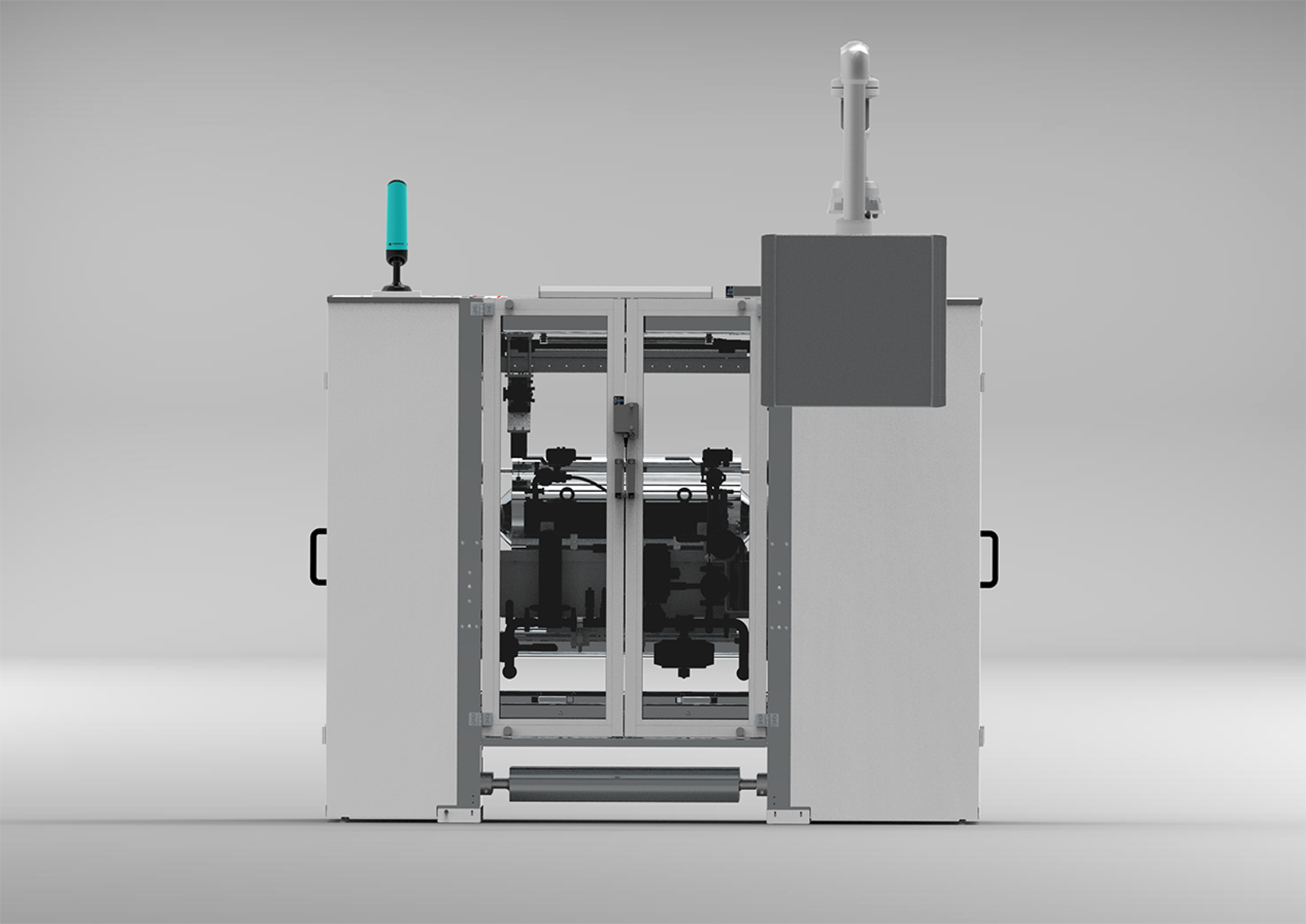

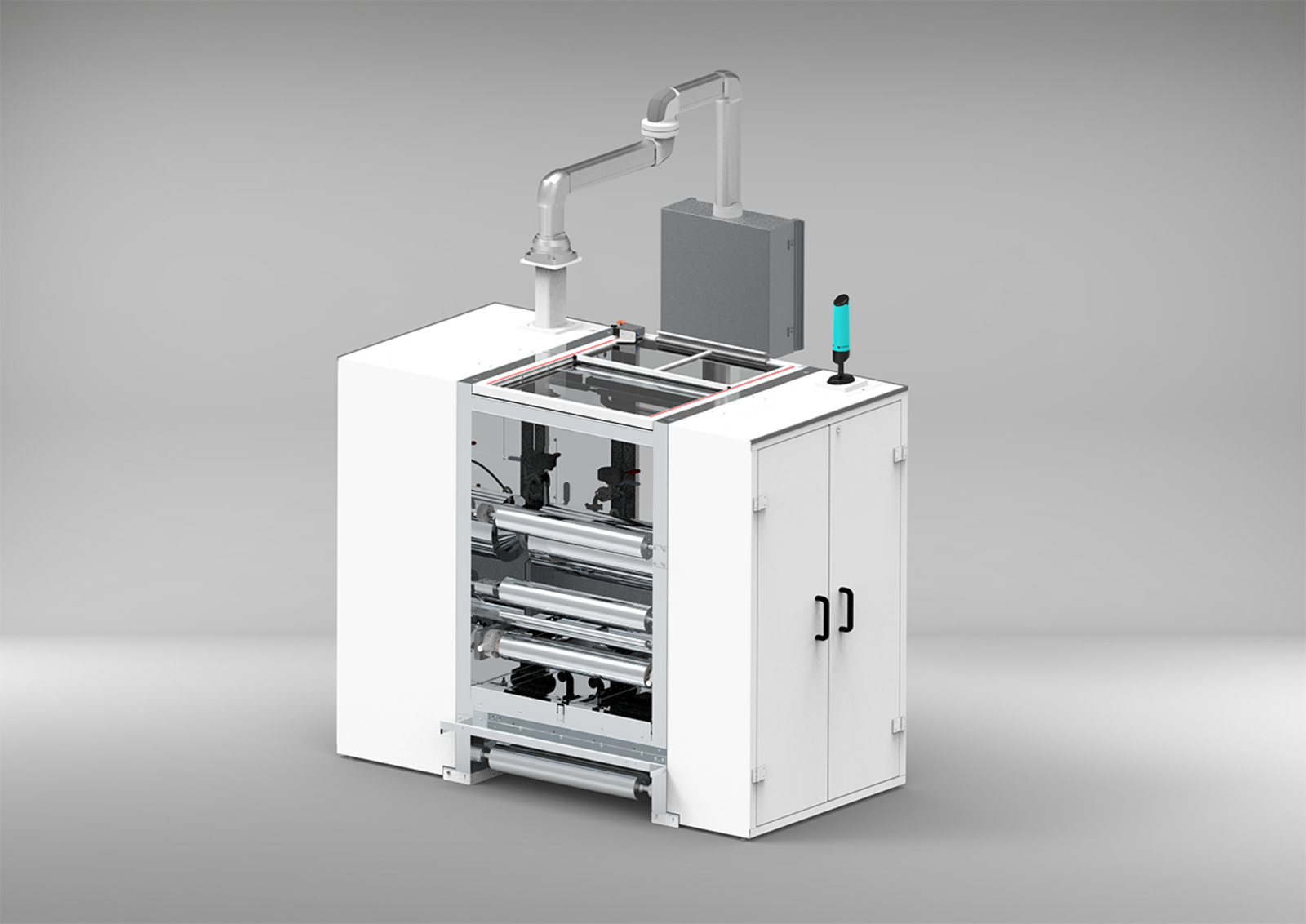

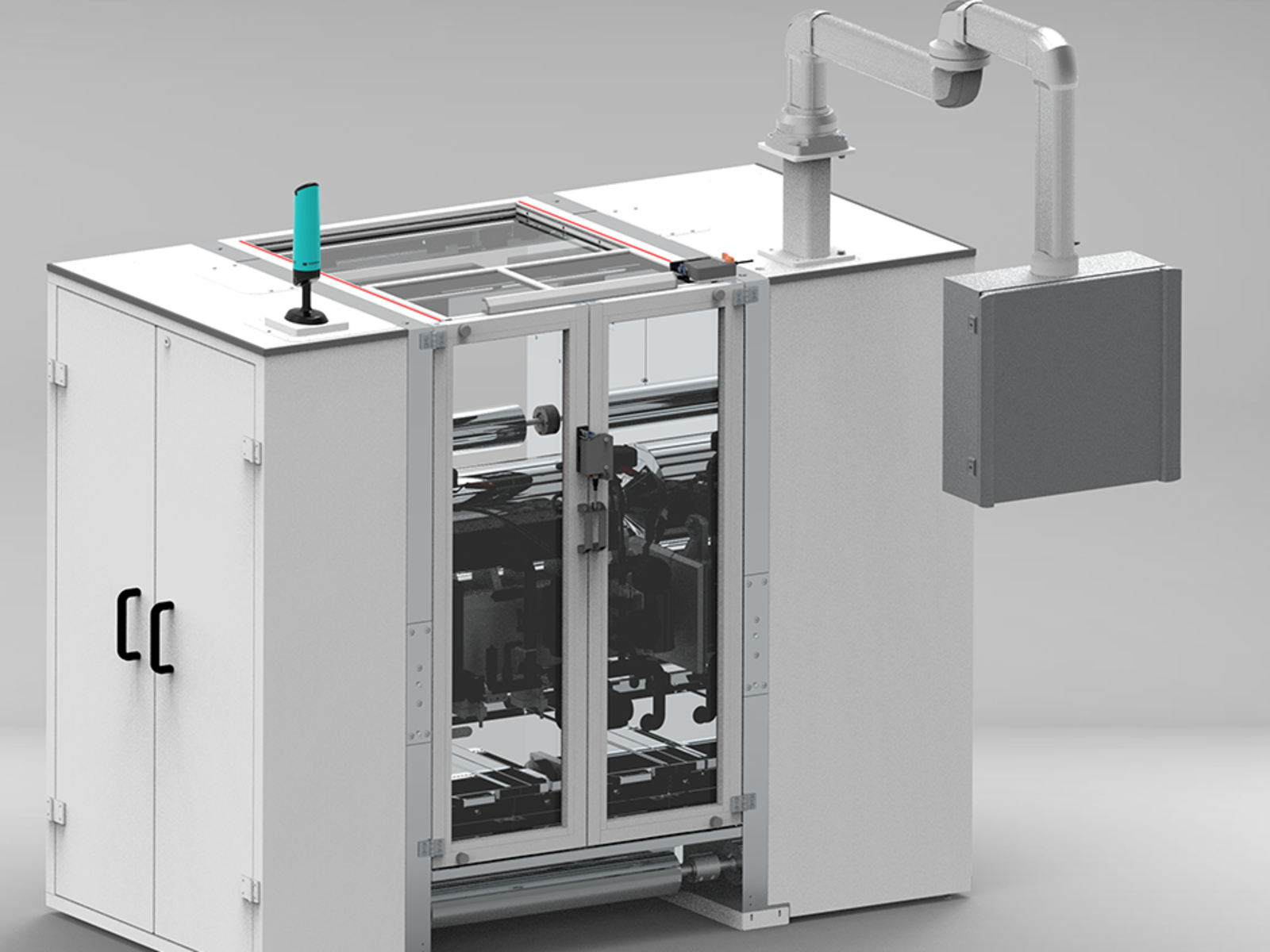

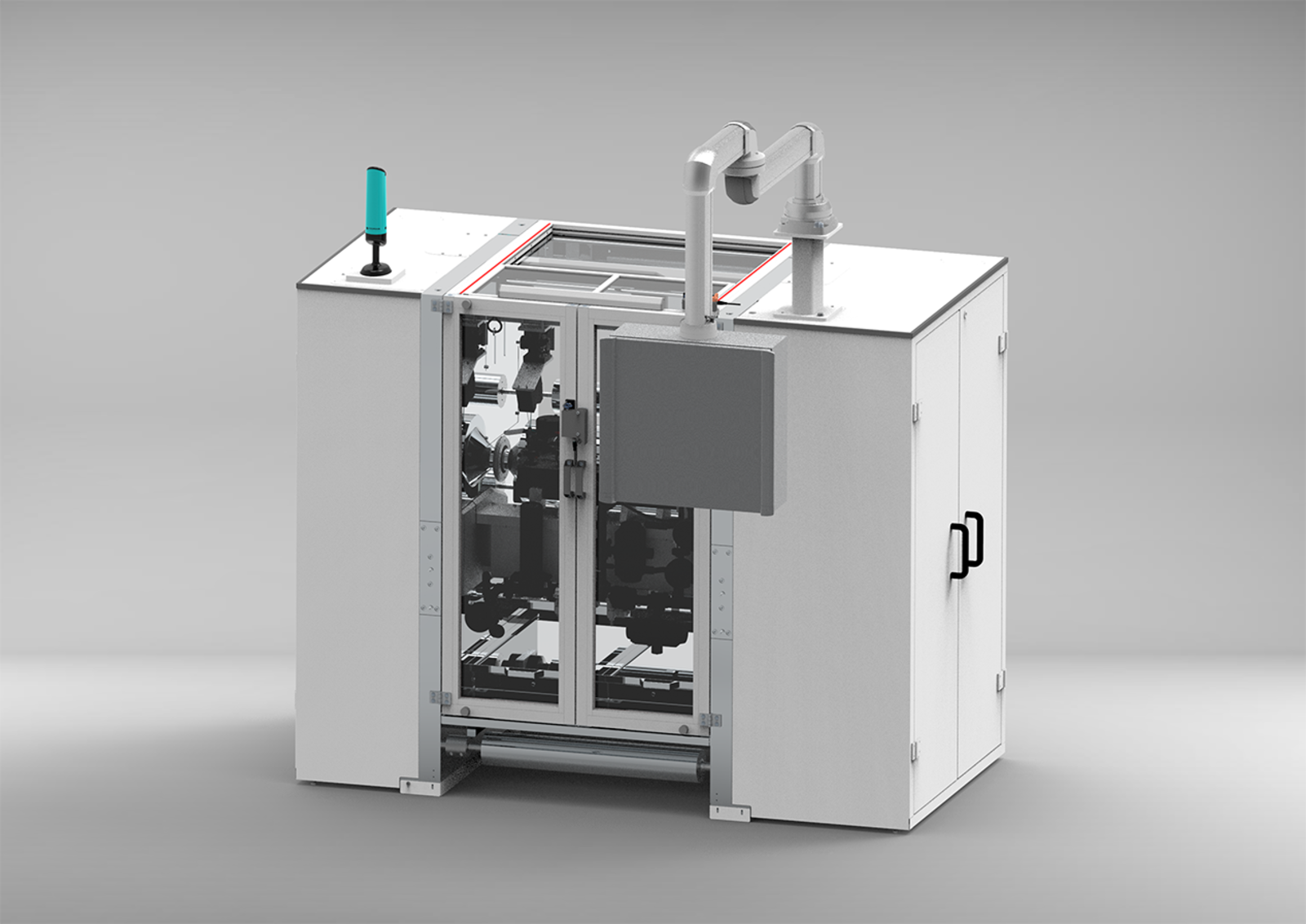

Coater
Our high-precision die coaters are designed to deliver outstanding coating accuracy, uniformity, and process stability. With customizable configurations, our coating systems can be tailored to meet the specific requirements of a wide range of coating applications.
| Working widths | 100–1,400 mm |
| Mechanical speed | 1-100 m/min |
| Coating systems | Slot die / 5-roll coating unit / various squeegee coating systems, e.g., pressure chamber squeegee coating, etc. / and much more |
| Coating type | Full-surface, Strip and Intermittend |
A top-mounted sliding access panel provides direct access for removing and reinstalling the slot die using a hoist. The slot die is released by loosening the connection fitting and removing the mounting screws. Stops ensure precise and repeatable positioning during reinstallation.
The gap between the slot die and the film can be precisely and repeatably adjusted to the desired coating thickness using externally mounted, motorized precision stops.
Our coating units can be configured for demanding clean room and dry room environments. Customizable layouts include EX-proof design options and suitable mass supply systems, ensuring seamless integration into a wide range of production environments and coating systems.
The compact design and ergonomically accessible roller arrangement enable easy, flawless threading of the web into the coating unit.
A removable tray and smooth surfaces in the work area allow for thorough and time-saving cleaning of the coating unit.
