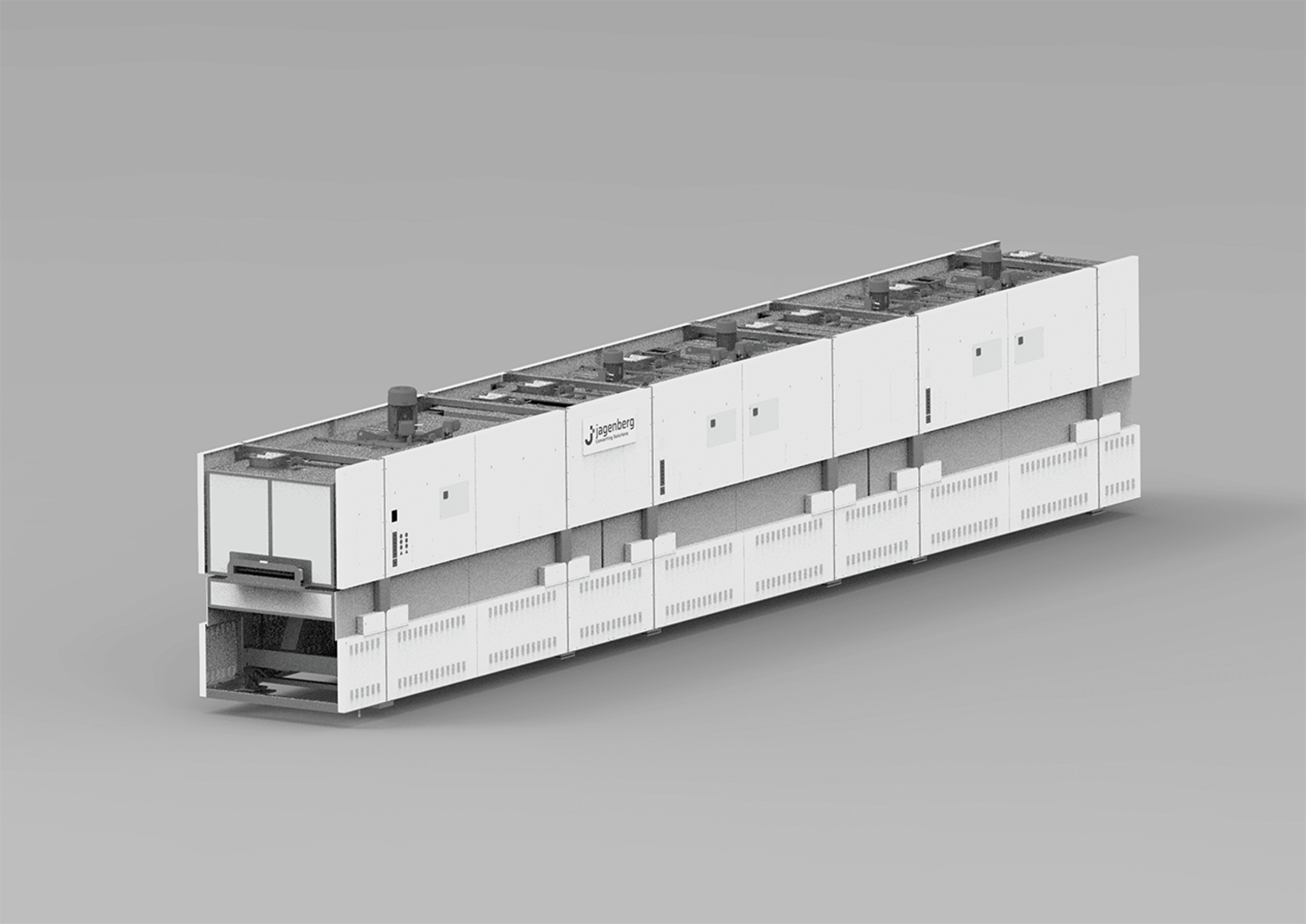

DRYING SYSTEMS
Whether it's convection, infrared, or combined drying systems, JCS develops the solution that fits your process.
| Working widths | 350-1,800 mm |
| Mechanical speed* | 2-500 m/min |
| Nozzle outlet velocity | 3-50 m/s |
| Dimensions | 5,000 mm (2x2,500 mm); by web width; 3,000 mm |
| Temperature* | 40-200°C |
| Drying Processes | Convection, Infrared, and Laser Drying |
* depends on customer requirements
Design and calculations for the dryer according to customer specifications, including for solvent-containing atmospheres, in accordance with DIN EN 1539.
- Maximum flexibility in the configuration of nozzles, IR, and laser lamps. (Variable spacing between nozzles)
- Pre-installed and tested sections

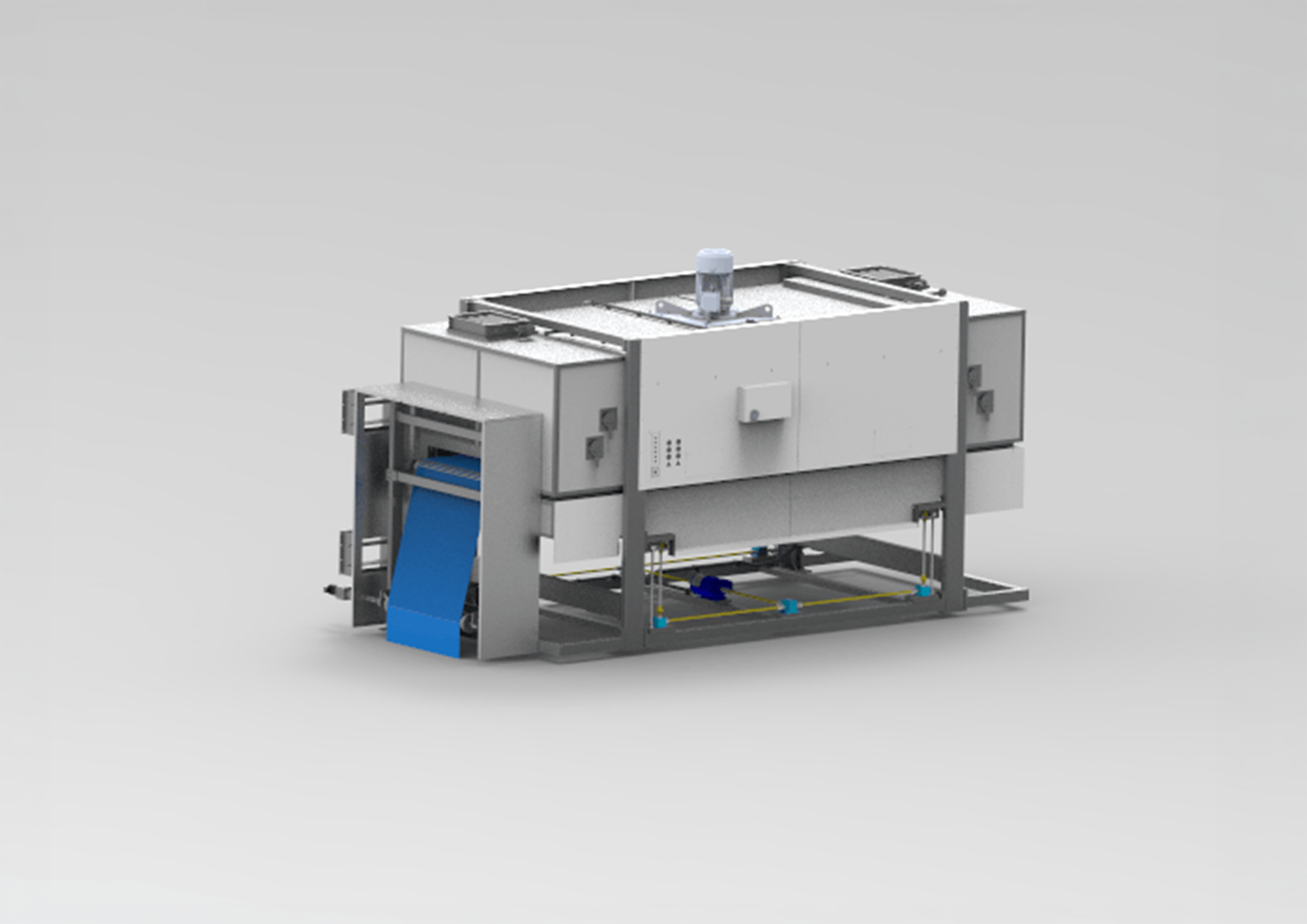

- Easy switching between the floating channel and roller-guided track (WebConEffect)
- Variable section length with 1 or 2 temperature zones
- (Standard length is 5 m) Custom dimensions available upon customer request or based on drying specifications

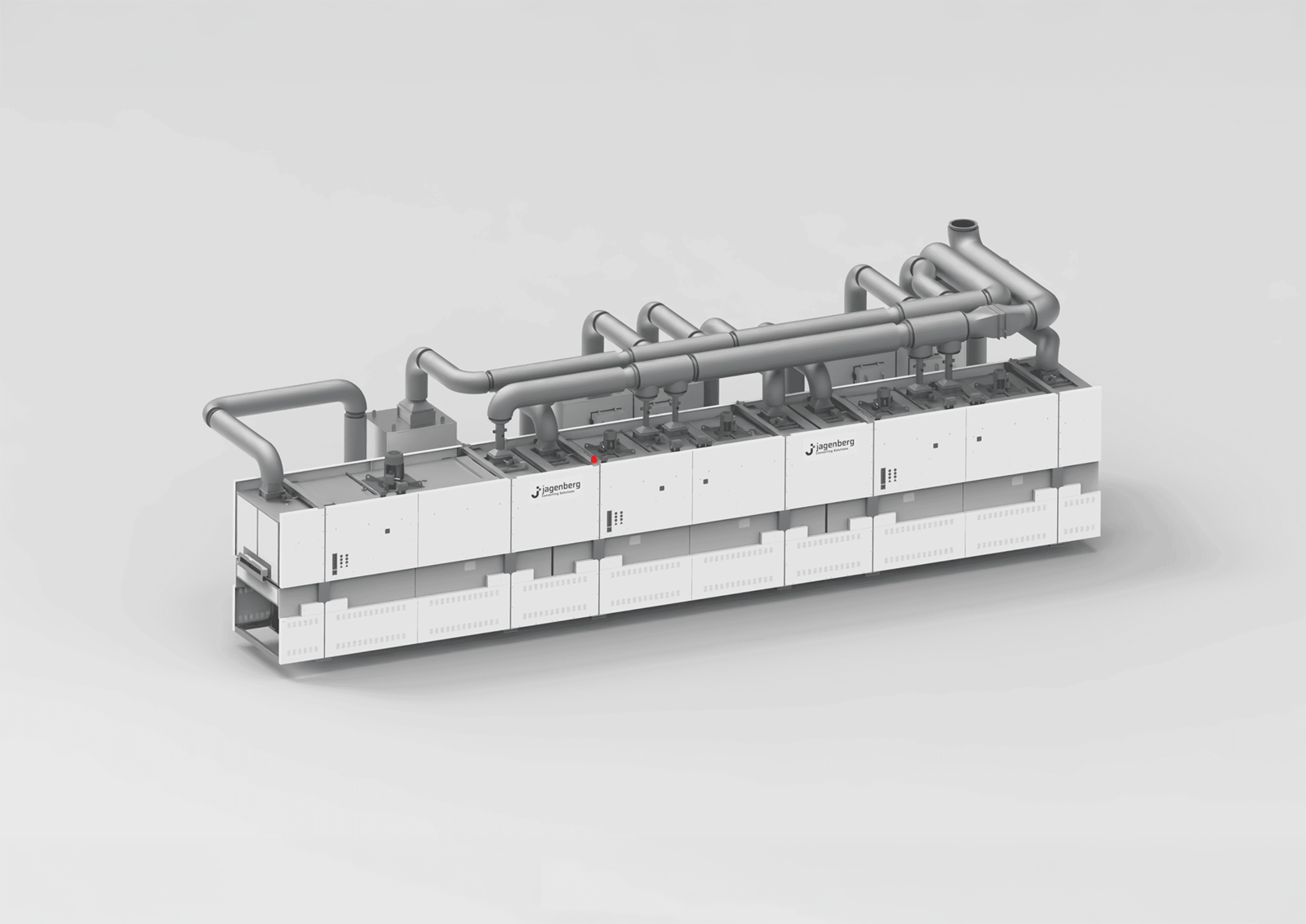

The dryer opens downward by 500 mm, allowing for easy piping installation from above.
- Monitoring of the web path via viewing windows or cameras. Cameras are grouped together on a control panel

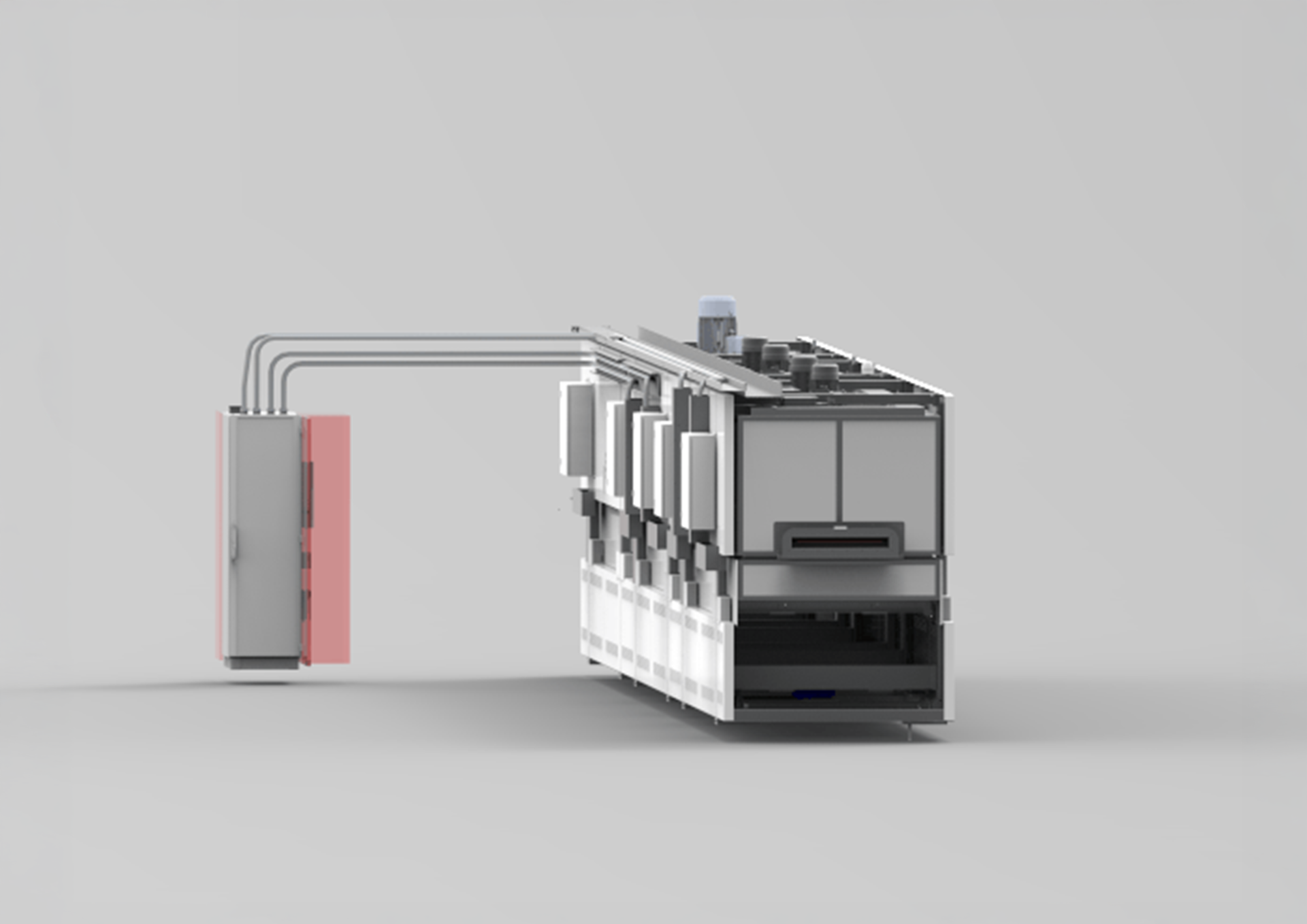

- Web temperature measurement, camera system with online monitoring, residual moisture and dew point measurement, LEL measurement with and without integration into safety measures
- Supply air temperature measurement and control, recirculated air temperature measurement and heating power control, exhaust air flow rate measurement
Easy maintenance thanks to quick nozzle replacement, optimal cleaning capabilities due to the easy installation and removal of the track-guiding elements, easy adjustment of the number and type of nozzles in the upper and lower frames.
Quality assurance for each section, including certification and pressure testing
