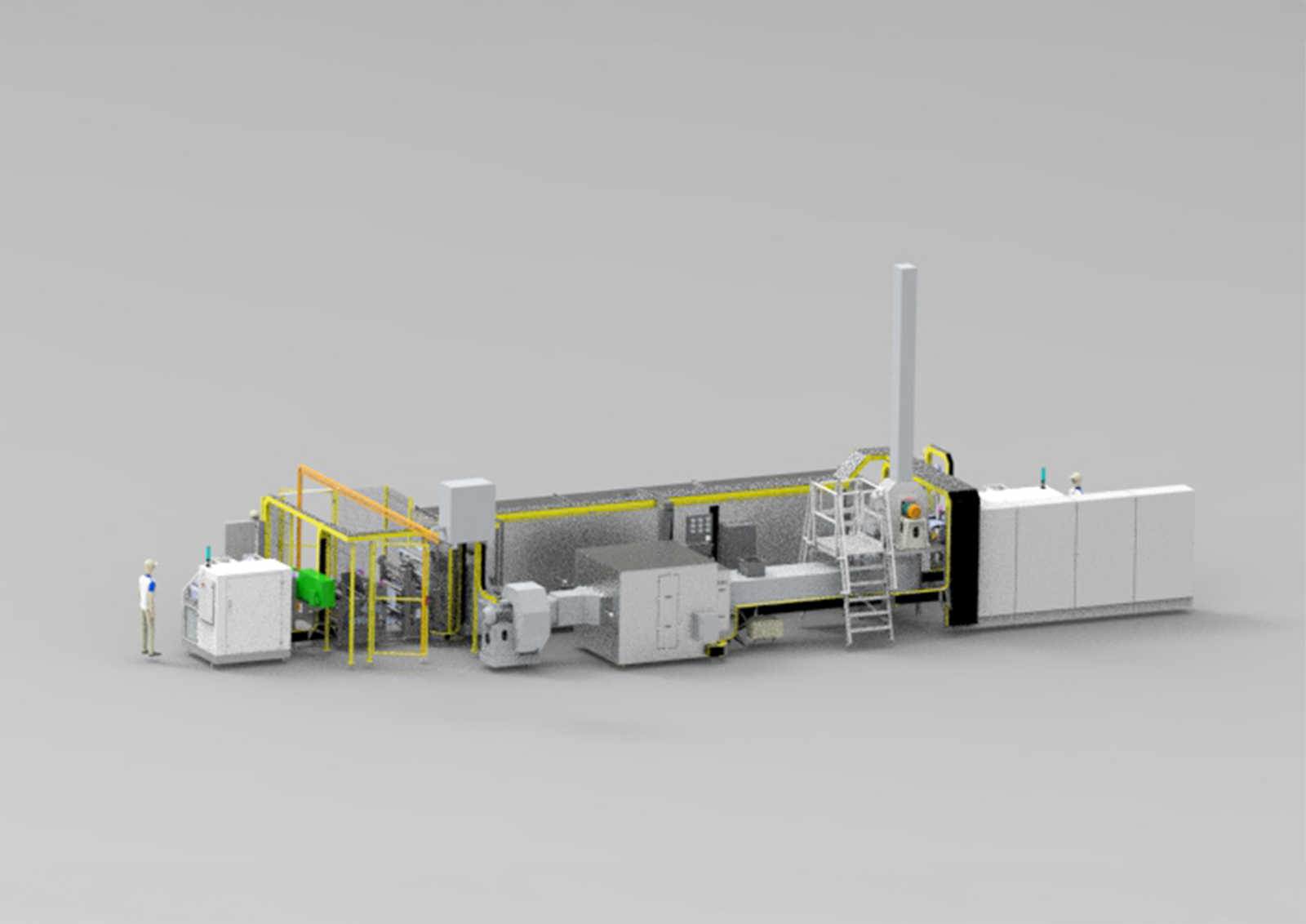

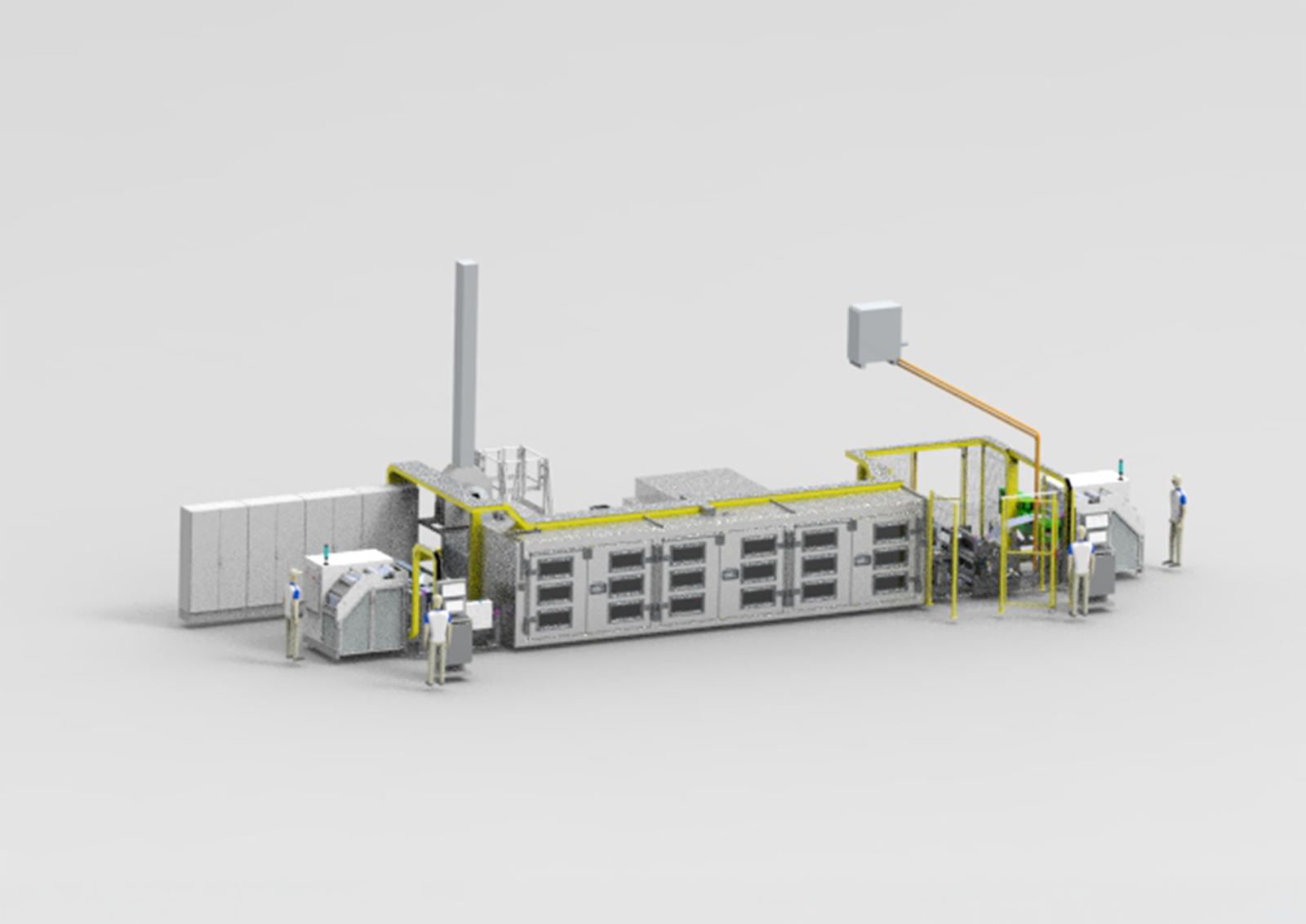

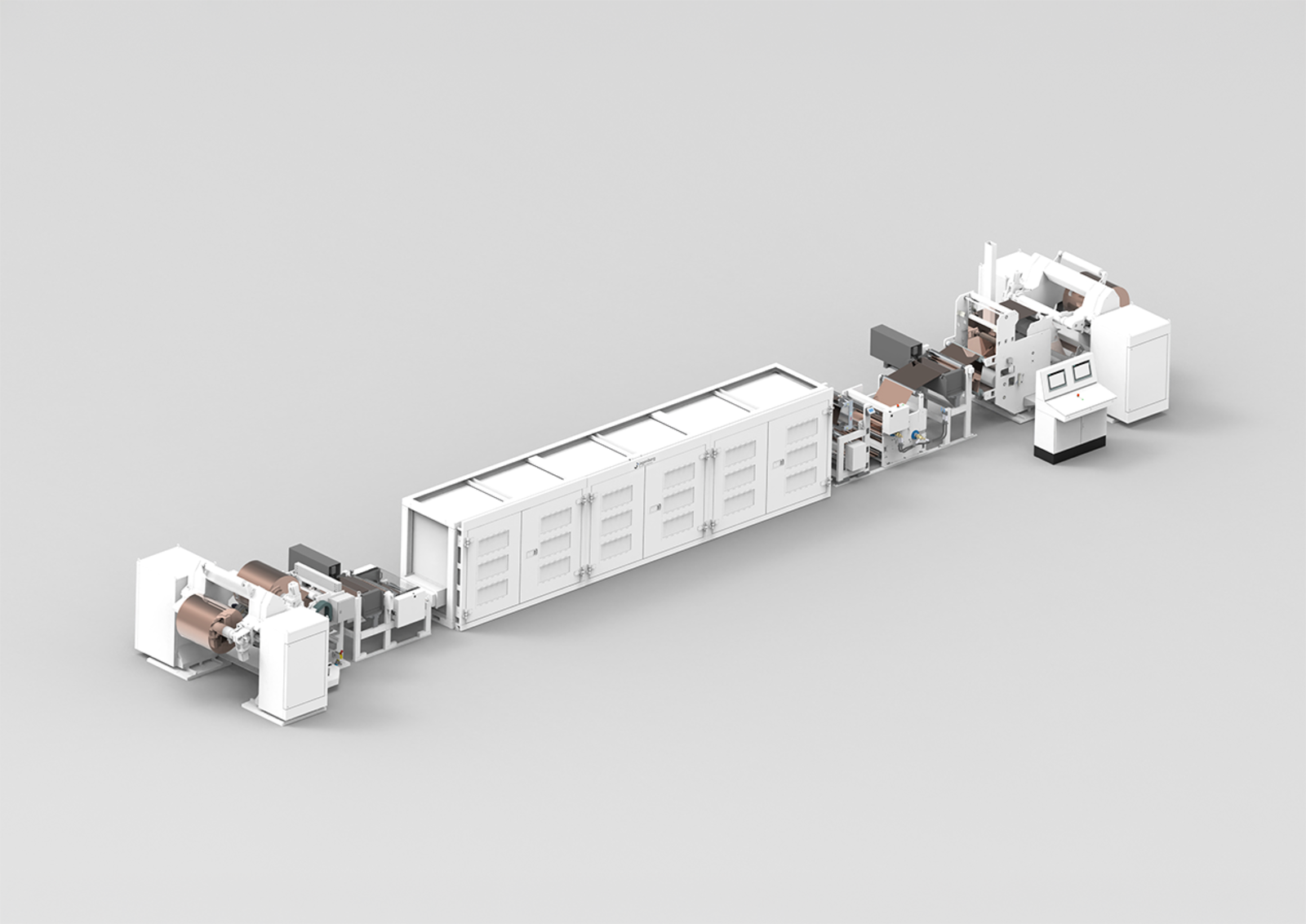

Roll-2-Roll Post Drying
Ready to bring your Gigafactory output to the next level? Then it’s time to leave inefficient and tedious batch processes like cell or coil baking behind: Enjoy the productivity and efficiency of continuous roll-to-roll electrode post drying with your customized JCS Triplex DryStar Dryer.
| Material | Single or double side coated electrode foils (pre or post calendering), Anode and Cathode |
| Target moisture content | < 150-200 ppm |
| Foil thickness | 6 – 20 µm |
| Coating | Anode: 30–200 g/m² Cathode: 70–400 g/m² (single sided) |
| Foil width | Up to 700 mm (wider upon request) |
| Line speed | Up to 100 m/min |
| Dryer Temperature | 50 – 200 °C |
* other widths on request
** depends on used material parameters
Your dryer is specifically tailored to meet the requirements of your product, the target moisture content and the desired output.
The main energy input is achieved by highly efficient IR-Lamps. Thanks to our proprietary simulation software, we implement a strict resource saving, minimum fresh air volume strategy.
The configuration and positioning of rollers and IR lamps can be adapted easily with large flexibility. Variable section lengths and modular overall allow for easy accommodation to your specific process speed and output requirements.
Precise temperature monitoring and control avoids hot spots and distributes temperature evenly. It adapts easily to different material characteristics.
Designed for seamless integration into dry & clean rooms.
Our patented inline system helps you determine residual moisture content reliably and economically.
